Curing of BRAWO® resins

BRAWO® epoxy resins can cure at ambient temperature. The addition of heat can significantly reduce the curing time. BRAWO® SYSTEMS offers reliable heating units, for curing acceleration using water, steam or UV/LED light, that rapidly pay for themselves.

Hot Water Curing

Curing with Hot Water

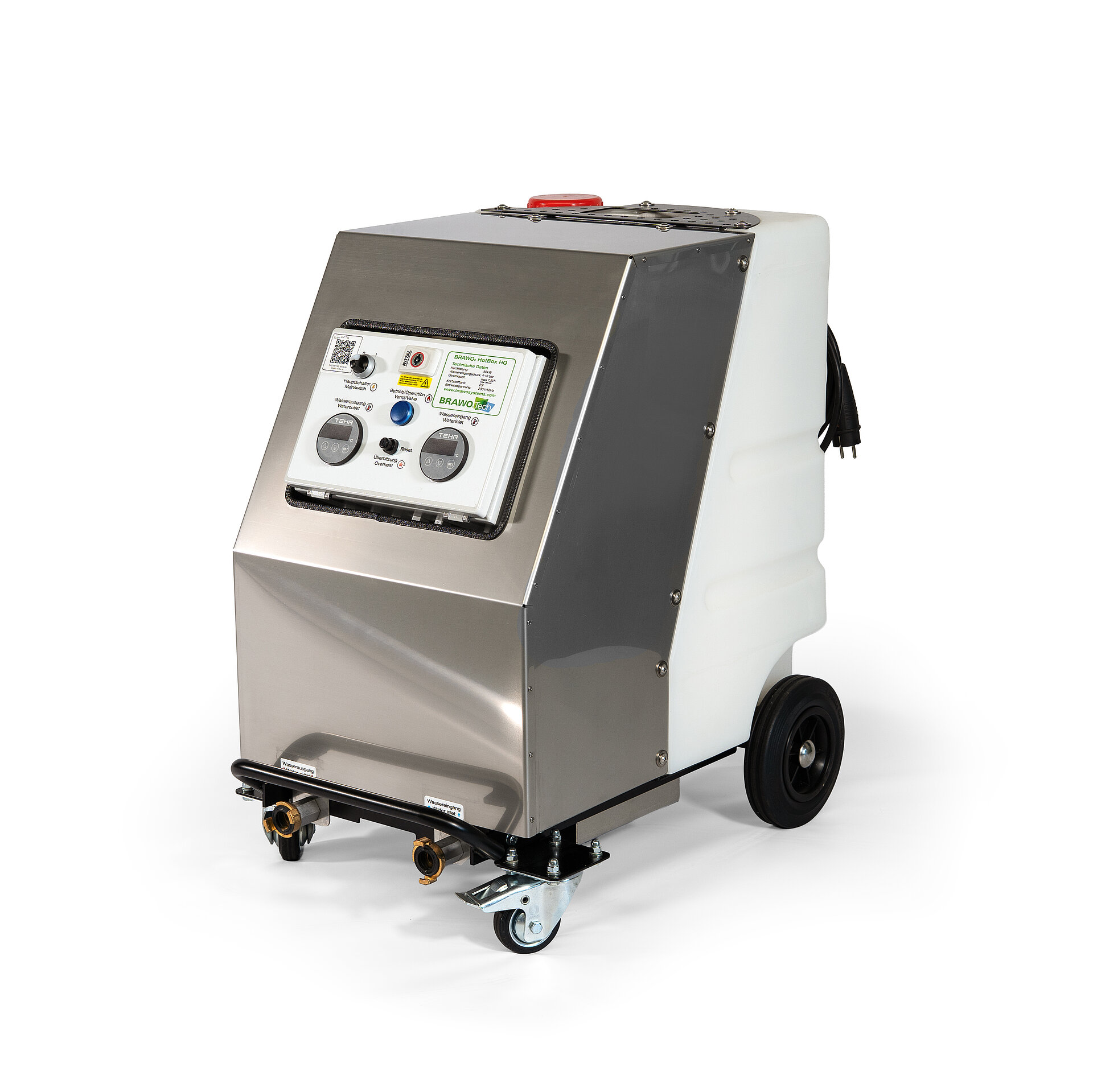

BRAWO® HotBox HQ

The BRAWO® HotBox HQ is a diesel-powered continuous heater specially designed for domestic sewer rehabilitation. Thanks to the high heating output, up to 3000 litres of water can be heated per hour.

The mobile unit can be easily transported and can be operated outdoors close to the rehabilitation site.

Advantages of the BRAWO® HotBox HQ

  • Oil or diesel-fired flow-type heater
  • Mobile heating device
  • Water capacity can exceed 3000 l/h
  • Temperatures of up to 80 °C

echn

Tecnical Data
Voltage:230 V/50 Hz
Water throughput l/hr (min./max.):1800/3000
Filling capacity at 50 °C  l/hr:1380
Temperature: up to 80 °C
Burner output:60 kW
Dimensions (L x W x H mm): 830x 455 x 760
Weight:85 kg
Max. operating pressure:20 bar

Accesoires BRAWO® Hotbox HQ

Hose set (water)

  • 2 x 10 m and 1 x 2 m water hoses with GEKA couplings

BRAWO® Circulation Pump HP 1200 and Basic 840

During warm curing, the BRAWO® HotBox HQ/HotBox L is connected to the inversion drum and warm water is fed into the liner. The necessary circulation between the liner and BRAWO® HotBox HQ/HotBox L is provided by a special pump, which is designed for use with hot water.

Advantages of BRAWO® Circulation Pumps

  • Increased safety during liner installation, thanks to faster and more-uniform distribution of heat
  • High efficiency thanks to short curing time
  • More reliable installation

Technical data for the BRAWO® Circulation Pumps

 HP 1500Basic 840
Weight24 kg15 kg
Dimensions
(L x W x H)		195 x 541 x 226 mm208 x 419 x 216 mm
Voltage230 V230 V
Rated power
at 50 Hz		1.5 kW0.88 kW
Delivery rate HA4800 l/h4080 l/h
Pumping capacity in conjunction with
BRAWO® HotBox HQ		approx.
50 l/min.		approx.
30 l/min.
